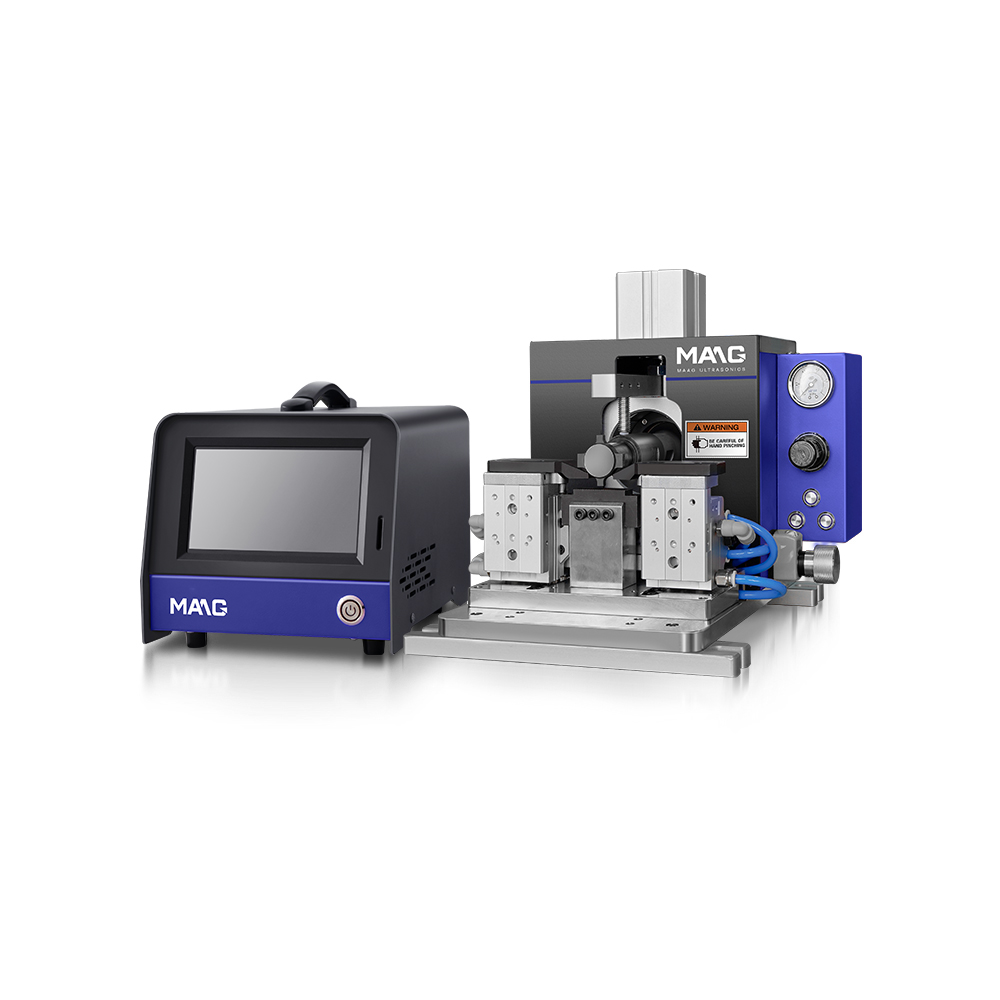

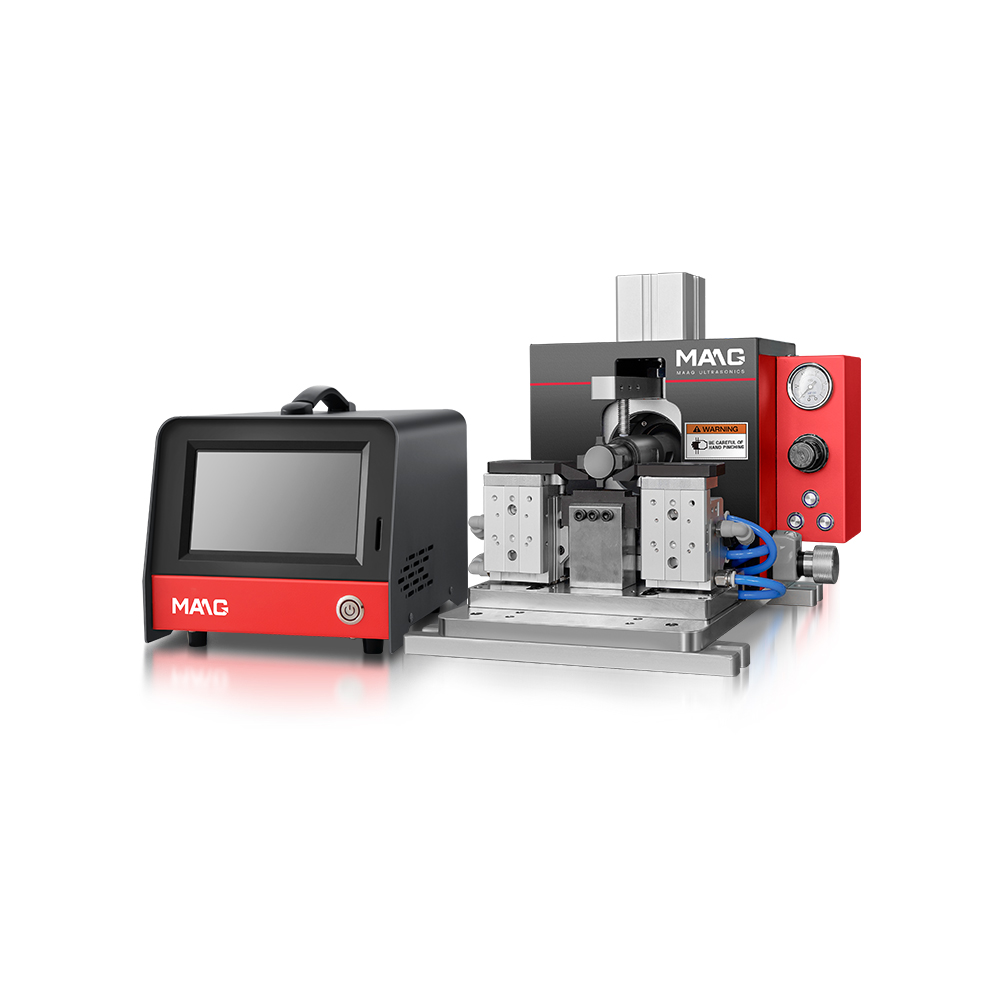

MG-DP-Ultrasonic terminal welder

Suitable for welding metal wire harnesses, such as copper and aluminum wires, commonly found in automotive and motorcycle wiring harnesses. Advantages: Fast, energy-efficient, high fusion strength, no sparks, no heat-affected zone, and a wide range of applications.

Support free switching between 10 international mainstream languages

The energy output is precise and can position and weld small or complex structures. It is suitable for electronic components and precision devices.

Excellent welding quality: high joint strength, good sealing, no obvious damage on the surface, and smooth appearance

Automatic frequency tracking generator, automatic amplitude compensation, stable power output

The welding process takes a short time and can achieve instant connection.

Get a Quote

Essential Details

Model	MG-DP-Ultrasonic terminal welder
Welding capabilities	6-38mm²
Air source pressure	0.2-0.8Mpa adjustable
Welding energy	10~9999J
Rack size	300510623mm
Welding power	4000W
Working frequency	20KHZ±300Hz
Data storage	100 groups
Welding quality	Welding process monitoring
Application	Automotive connector harness, high voltage harness welding
Alarm function	Welding time/energy/pressure/amplitude power

Product Display

D20
